MoOCl2

MoOCl2 is a metallic 2D material. The layers are stacked together via van der Waals interactions and can be exfoliated into thin 2D layers. To buy MoOCl2 crystals please click here.

The MoOCl2 crystals produced at HQ Graphene have a typical lateral size of ~0.1cm (multiple crystals will be shipped), hexagonal shaped and have a metallic appearance. More information about the MoOCl2 crystals we sell can be found below.


MoOCl2 crystal properties
Crystal size ~1 mm (multiple crystals will be shipped)
Electrical properties Metal
Crystal structure Monoclinic
Unit cell parameters (at 100K) a = 1.280 nm, b = 0.378 nm, c = 0.657 nm, α = γ = 90°, β = 105.78°
Type Synthetic
Purity >99.995 %
Characterized by XRD, EDX
More information? Please contact us by email or phone


The single crystal MoOCl2 is characterized using:

XRD: single crystal and powder X-ray diffraction (D8 Venture Bruker and D8 Advance Bruker)
EDX: Energy-dispersive X-ray spectroscopy for stoichiometric analysis

XRD on MoOCl2:

Click on an image to zoom

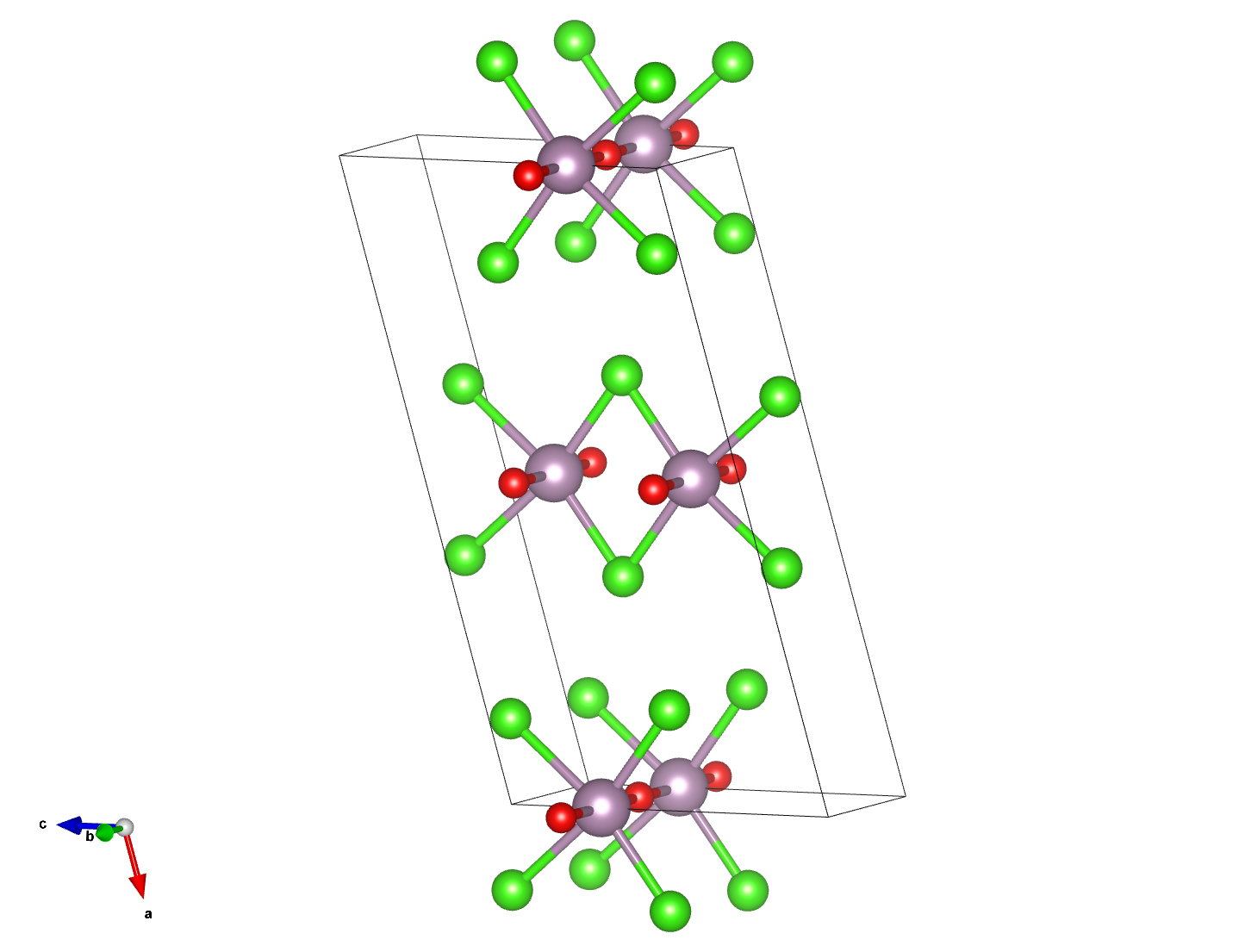

Single crystal X-ray diffraction (XRD) structure of a single crystal MoOCl2. X-ray diffraction was performed at 100K using a D8 Venture Bruker.
